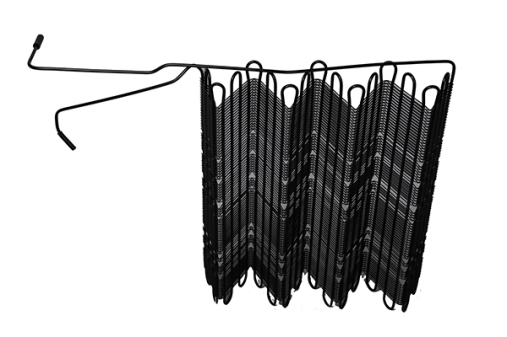

Wire on Tube W-bending Condenser Back
This product is a w-bend condenser composed of low-carbon steel wire and copper-plated steel pipe by welding. Different with the plate condenser, it has the advantages that the steel wire of the welding piece is staggered up and down, the product has
1. W-bending structure, impact structure and space saving.
2. The forced convection effect of the air between the tubes are good, high rate of heat exchanging.
3. The surface is paint with electrophoretic black cathodic， high anti-corrosion performance
Product parameter
Dimension | long | 500mm |
width | 430mm | |
height | 89mm | |
Main material specification | Copper plated steel pipe | Φ4.76*0.71mm |
mild steel wire | Φ1.3mm |
Cooperative partner
Application fields
Households electrical appliances refrigeration industry (refrigerator, freezer)
