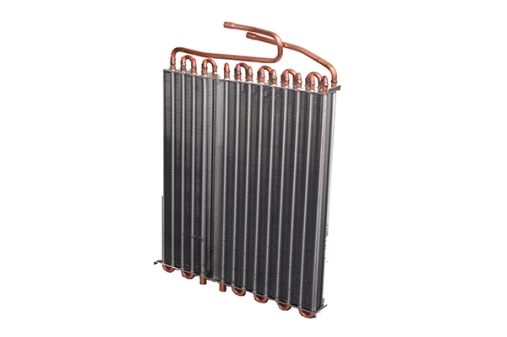

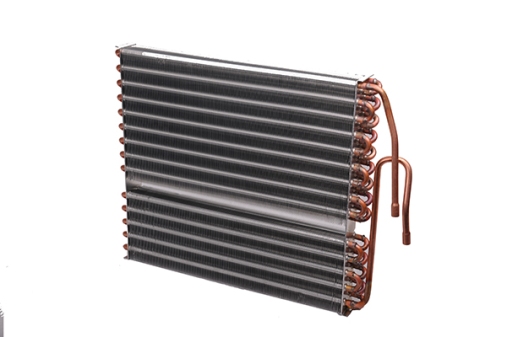

Cooper tube & Aluminum Fins EvaporatorBack
This product is a double loop fin evaporator composed of aluminum foil and copper tube. It is different from the commonly used all aluminum no-frost or expansion structure. It has the advantages of simple circuit structure and high heat exchange effi
1. Under the same heat exchange area, the heat exchange efficiency is high and the amount of refrigerant is small
2. Strong corrosion resistance, high pressure bearing capacity and good metal thermal strength
Product parameter
Dimension | Length | 430mm |
Width | 320mm | |
Height | 38.1mm | |
Main material specifications | Copper elbow | Φ7*0.41mm |
Copper tube | Φ7*0.32mm | |
aluminum foil | thickness 0.12mm | |
Aluminum plate | 1.5mm | |
Copper pipe | Φ8*0.7.5mm |
Cooperative partner
Application fields
Households Electrical Appliances (refrigerators, air conditioners), dryers, freezers, medical cabinets and other fields
